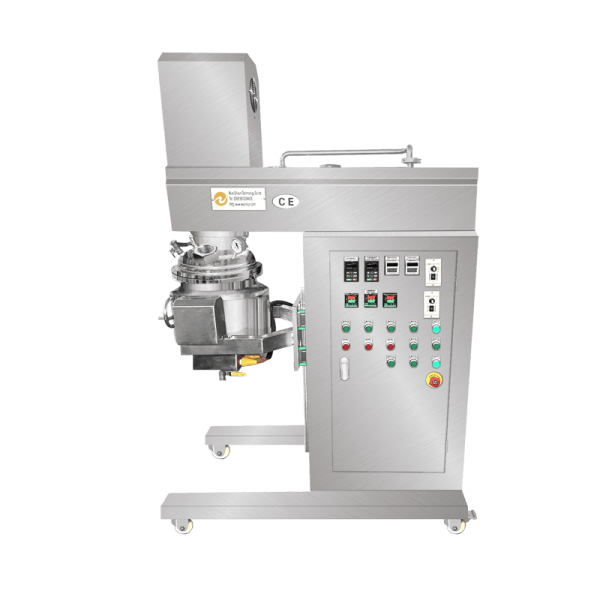

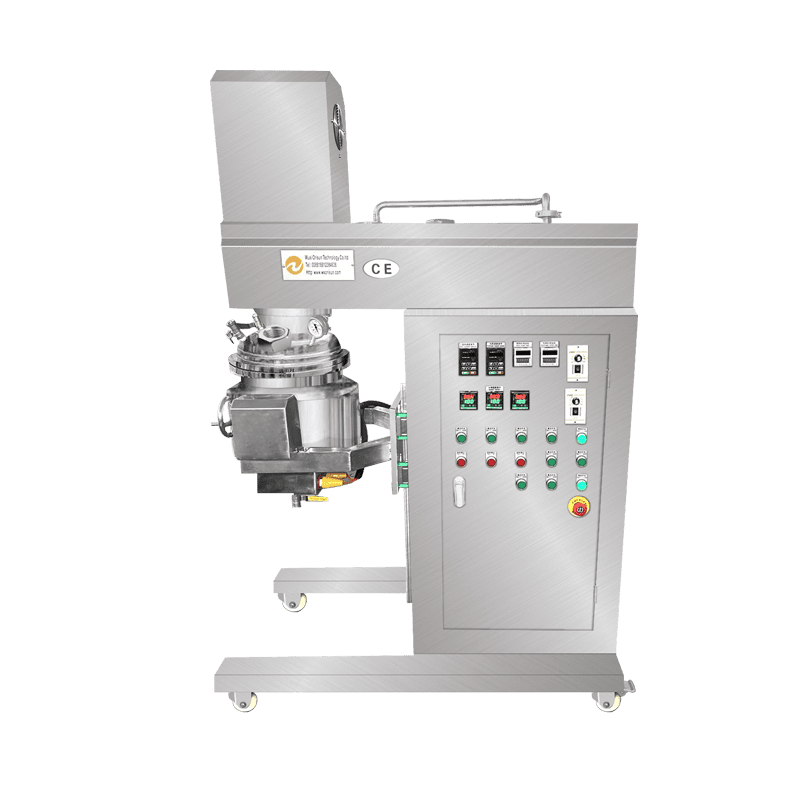

Lab Vacuum Emulsifier Homogenizer
With nearly 20 years of practical experience, the Orisun lab vacuum emulsifier homogenizer is widely used for new projects and initial processes of small batch production with its intelligent construc
With nearly 20 years of practical experience, the Orisun lab vacuum
emulsifier homogenizer is widely used for new projects and initial processes of
small batch production with its intelligent construction, high efficiency and
user-friendliness. It is mainly used in the pharmaceutical, chemical and
cosmetic industries.
Features:
Suitable for creams and lotions with viscosity of 10,000~200,000cps.
Working capacity from 2L to 20L.
Ultimate vacuum can reach -0.1 MPA, realizing high efficiency of
defoaming.
Orisun Lab Vacuum Emulsifier Homogenizer Features
Suitable for creams and lotions with viscosity of 10,000~200,000cps.
Working capacity from 2L to 20L.
Reverse mixing system with center mixing shaft and wall scraping mixing.
The shape of the outer frame mixing paddle fits the design of the mixing tank
to ensure that there is no dead space in the mixing tank to enhance the
mixing.
Equipped with a discharge valve at the bottom of the pot, which is convenient
for draining the cleaning sewage.
Ultimate vacuum can reach -0.1 MPA, realizing high efficiency of
defoaming.
Compact structure, water-oil pot and emulsifying pot are mounted on the same
frame, now only need to connect the power cord for installation.
Material 304 and 316 are optional.
Equipped with a hand wheel for easy turning and discharging.
Orisun Lab Emulsifying Mixer
We have a number of patents for the design of lab vacuum emulsifier
homogenizer pot with generous and beautiful appearance, advanced internal mixing
design, rational use of dead-end scraping wall-free combined mixing frame and
spiral belt mixing efficiency.
Suitable for creams and lotions with viscosity of 10,000~200,000cps.
Working capacity from 2L to 20L.
Reverse mixing system with center mixing shaft and wall scraping mixing.
Equipped with a discharge valve at the bottom of the pot, which is convenient
for draining the cleaning sewage.
Ultimate vacuum can reach -0.1 MPA, realizing high efficiency of
defoaming.
Specification
Lab Vacuum Emulsifier Homogenizer Technical Data
Orisun lab vacuum emulsifier homogenizer offer a range of customization
options to cater to the specific requirements of different industries and
applications.
| Dimension | Item | ZJR-2 | ZJR-5 | ZJR-10 | ZJR-20 |
| Emulsifying Tank | Design Volume (L) | 2 | 6.5 | 12.5 | 20 |
| Working Volume (L) | 1.5 | 5 | 10 | 16 | |
| Scraper Mixing Power (kw) | 0.37 | 0.55 | 0.55 | 0.75 | |
| Scraper Mixing Speed (rpm) | 0-86 | 0-86 | 0-86 | 0-86 | |
| Homogenizer Power | 0.75 | 1.5 | 1.5 | 1.5 | |
| Eletrical Heating Power (kw) | 1 | 1 | 1 | 1 | |
| Homogenizer Speed (rpm) | 0-2900 | 0-2900 | 0-2900 | 0-2900 | |
| Limit vacuum Pressure (mpa) | -0.095–0.1 | -0.095–0.1 | -0.095–0.1 | -0.095–0.1 | |
| Water Tank | Design Volume (L) | 0.12 | 0.12 | 7.6 | 12 |
| Working Volume (L) | 1.6 | 3.7 | 6 | 10 | |
| Mixing Power (kw) | 0.025 | 0.04 | 0.025 | 0.55 | |
| Mixing Speed (rpm) | 0-1400 | 0-1400 | 0-1400 | 0-1400 | |
| Eletrical Heating Power (kw) | 1 | 1 | 1 | 2 | |
| Oil Tank | Design Volume (L) | 1.6 | 3.7 | 7.6 | 10 |
| Working Volume (L) | 1.2 | 3 | 6 | 8 | |
| Mixing Power (kw) | 0.025 | 0.04 | 0.04 | 0.55 | |
| Mixing Speed (rpm) | 1200 | 1200 | 1200 | 1400 | |
| Eletrical Heating Power (kw) | 1 | 1 | 1 | 2 | |
| Dimension | L*W*H (mm) | 880*800*1430 | |||
