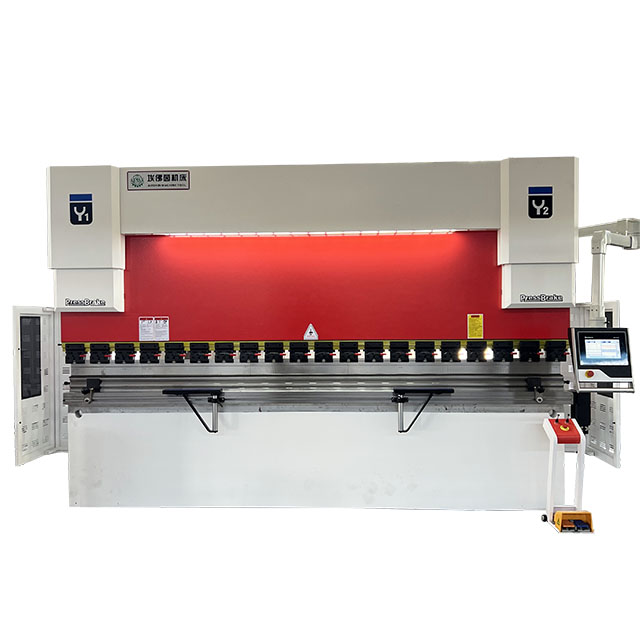

Electro-hydraulic Synchronized CNC Press Brake 220T4100 DA53T
CNC sheetmetal press brake with streamlined design,high speed,high precision,high rigidity;Electro hydraulic servo system,full loop controlling the synchronization of the upper slider

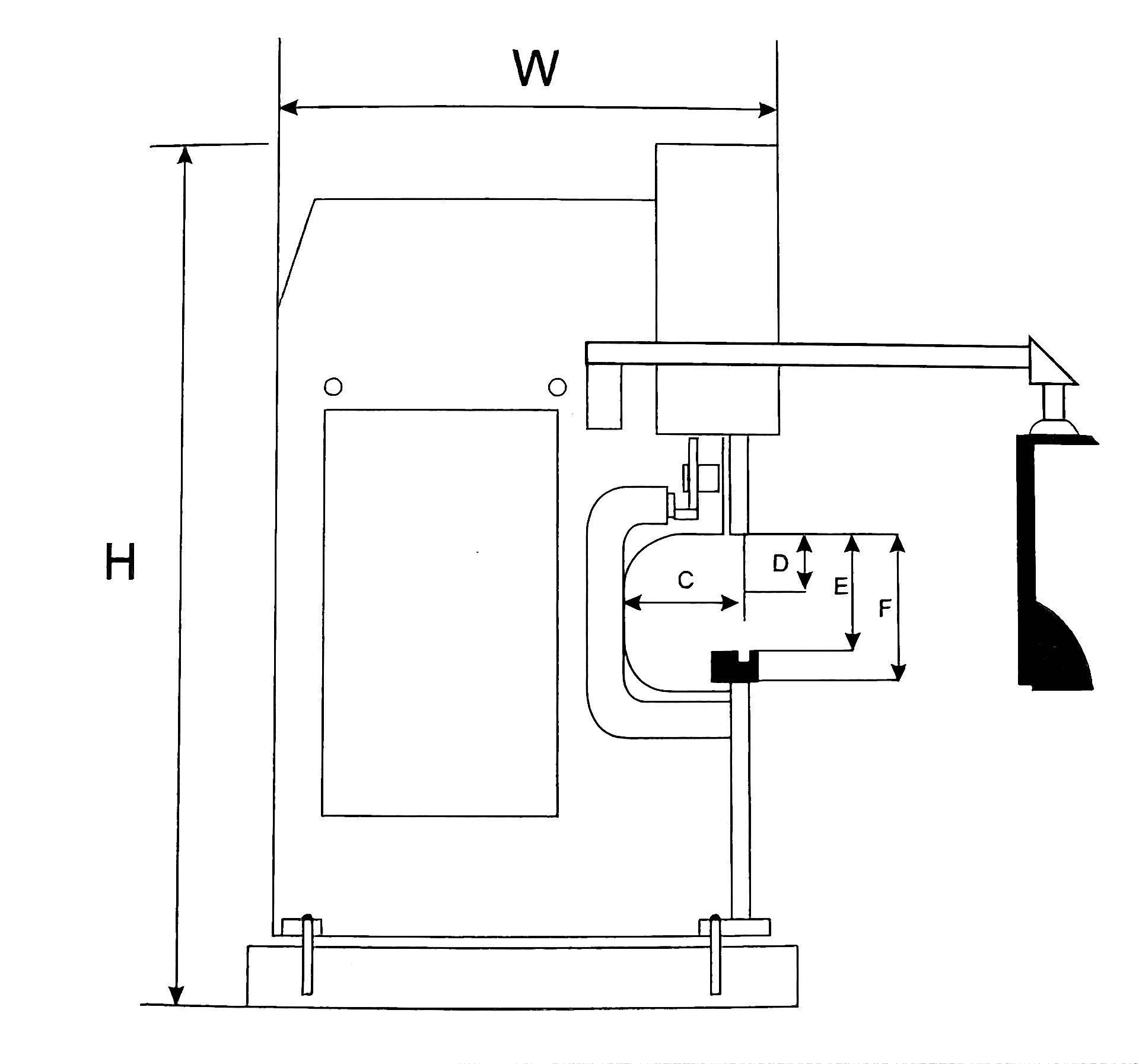

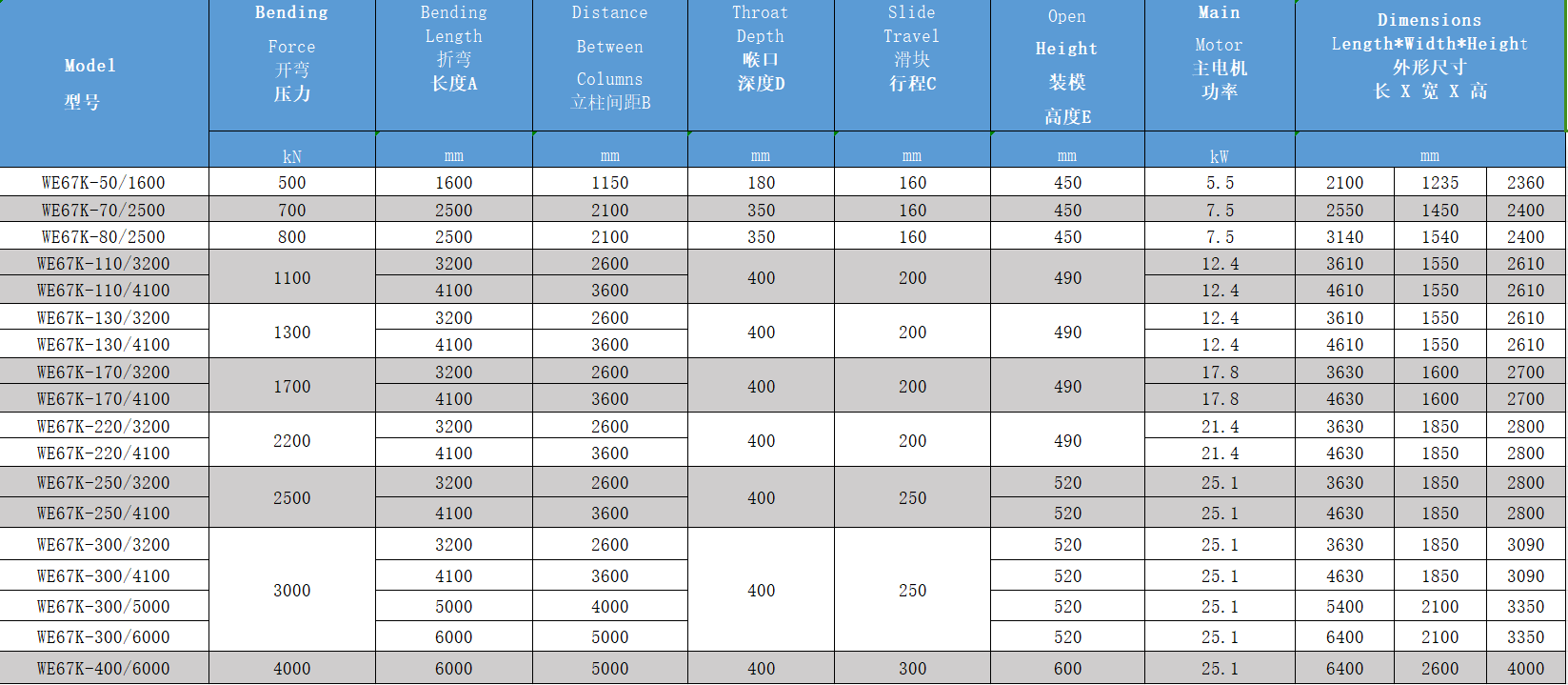

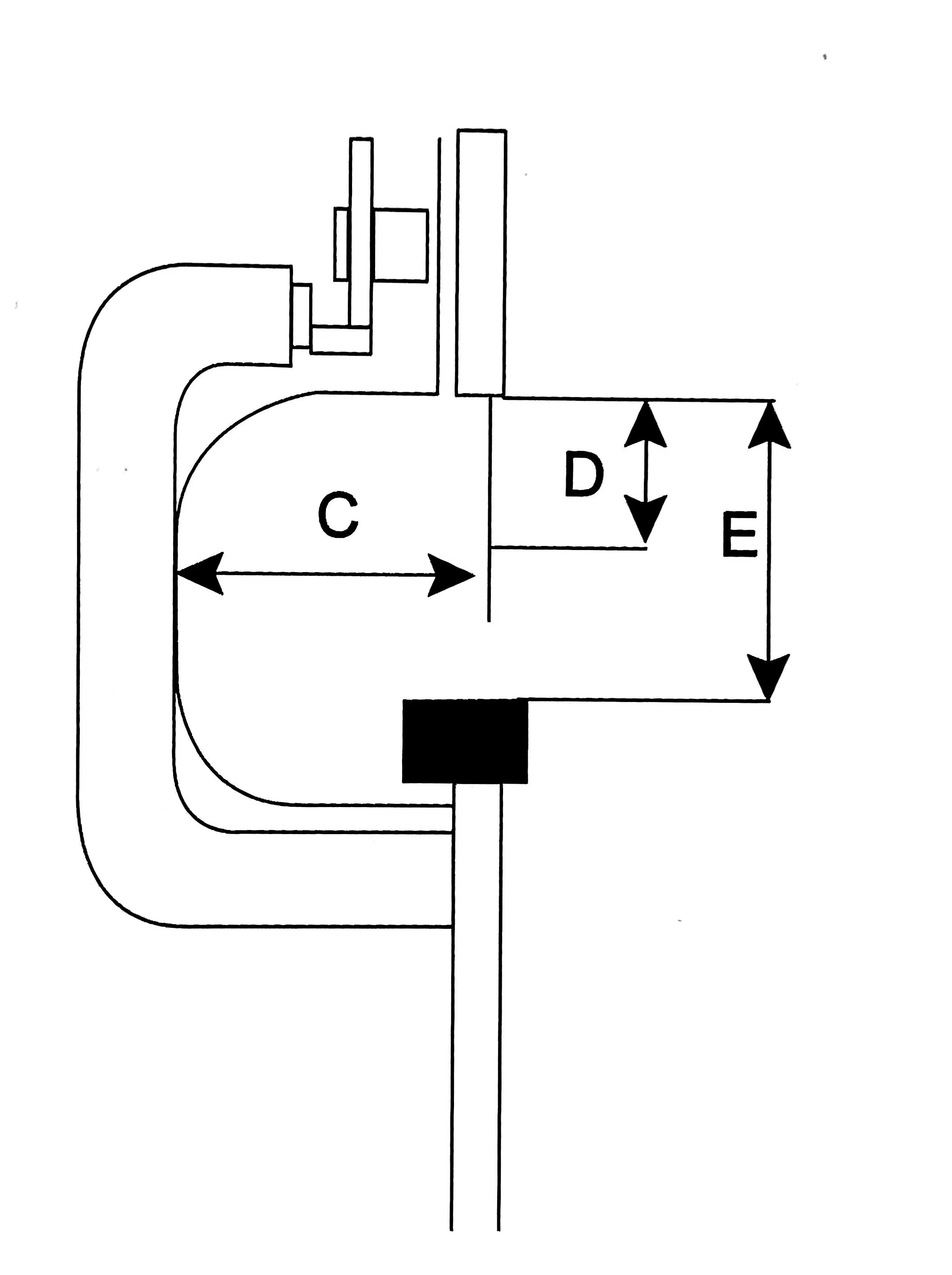

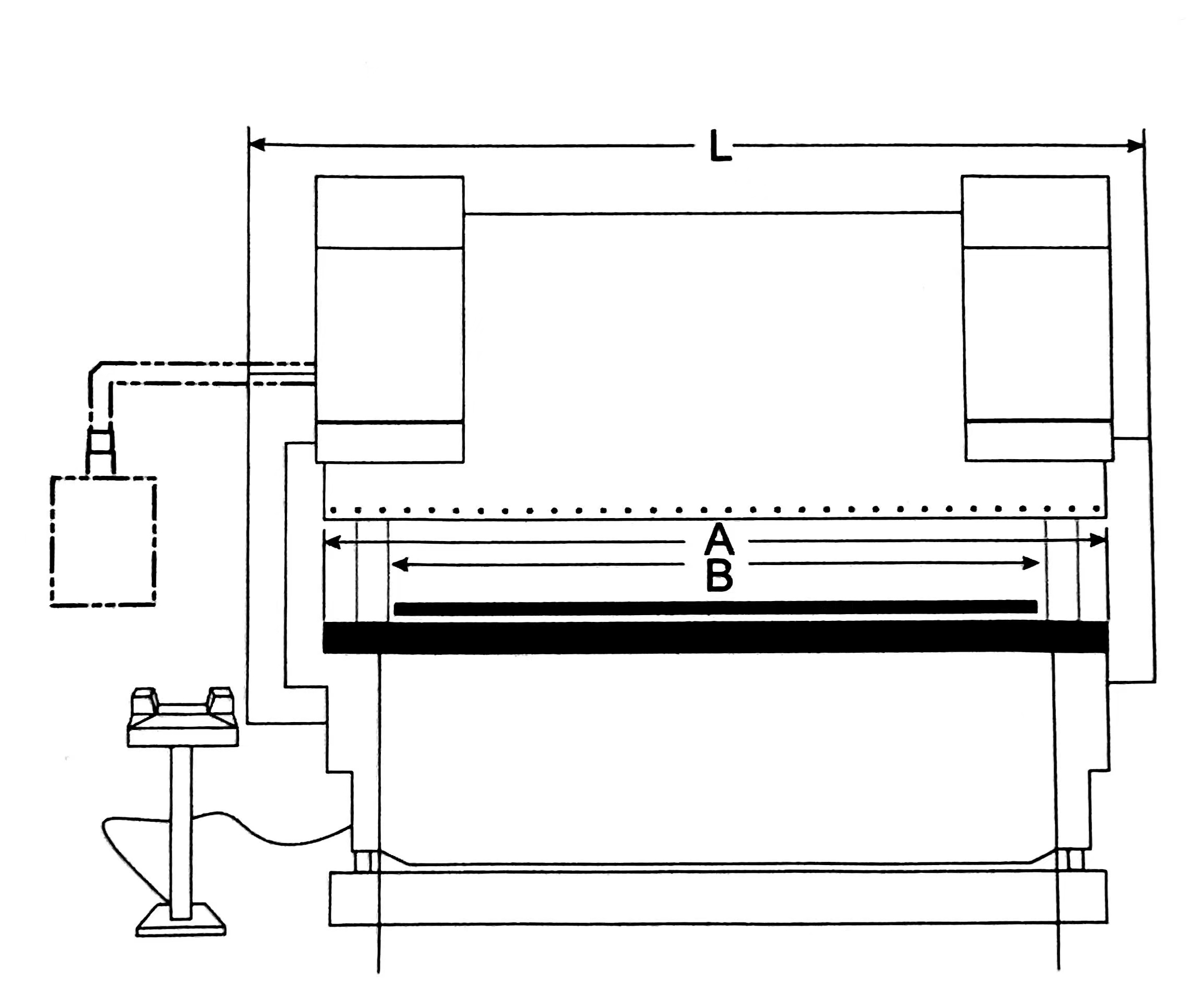

Techical Parameter

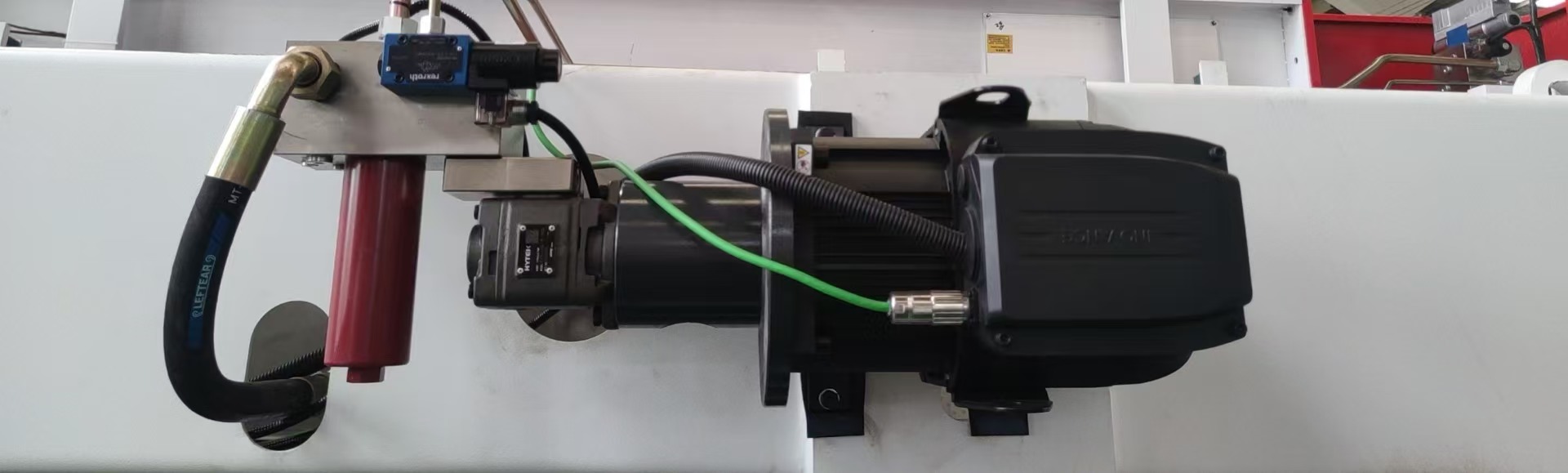

SVP Control Technology
The oil pump motor uses a servo motor to replace the ordinary motor,realise the real-time control of the motor speed, reduce the useless work of the oil pump、
and realise the energy-saving、efficient and stable characteristics of the bending machine.
Risid Frame

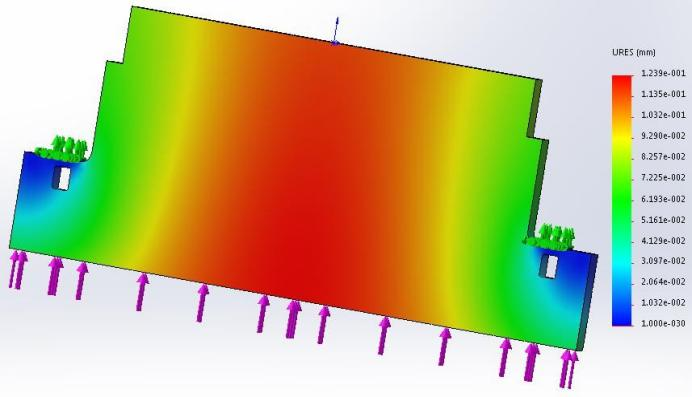

Adopt all steel welding frame and assembly workbench structure, with high precision and good rigidity;UGANSYS-CAD 3D finite element analysis and optimization design
are adopted for the main components to ensure the over- all stability of the rack.

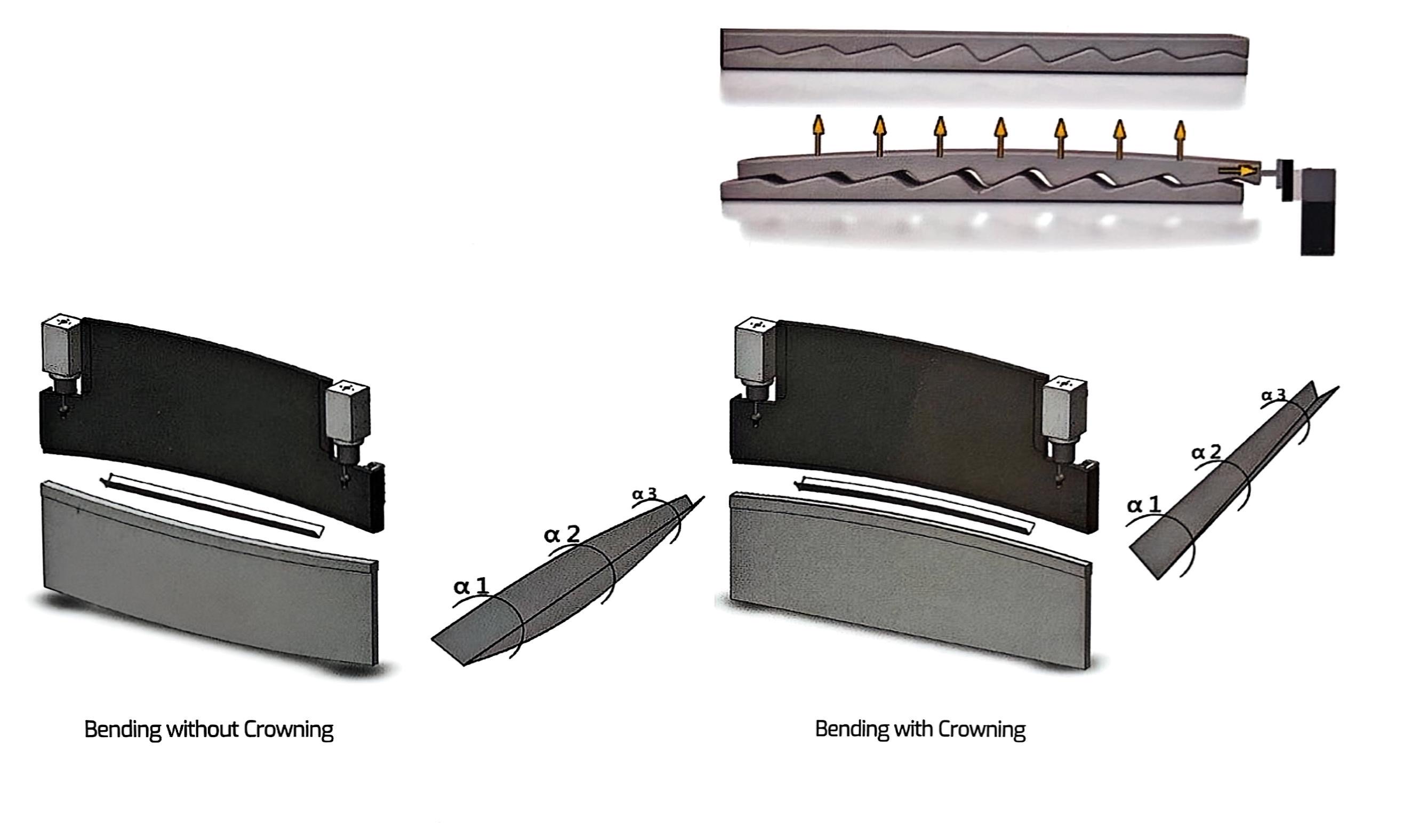

Mechanical Crowning
The compensation amount is automatically calculated and set by the NC system to ensure the consistency of the full-length bending angle.

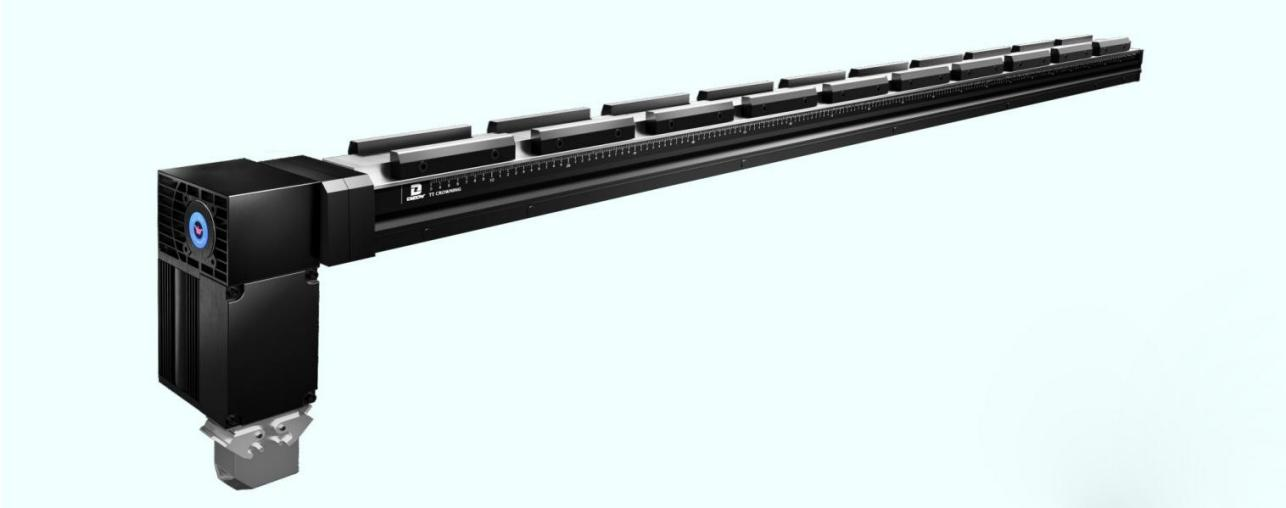

Mechanical Compensation Crowning System
The compensation closed-loop control has high control accuracy,and the compensation amount is automatically calculated and set by the NC system to ensure the
consis- tency of the full-length bending angle and straightness.

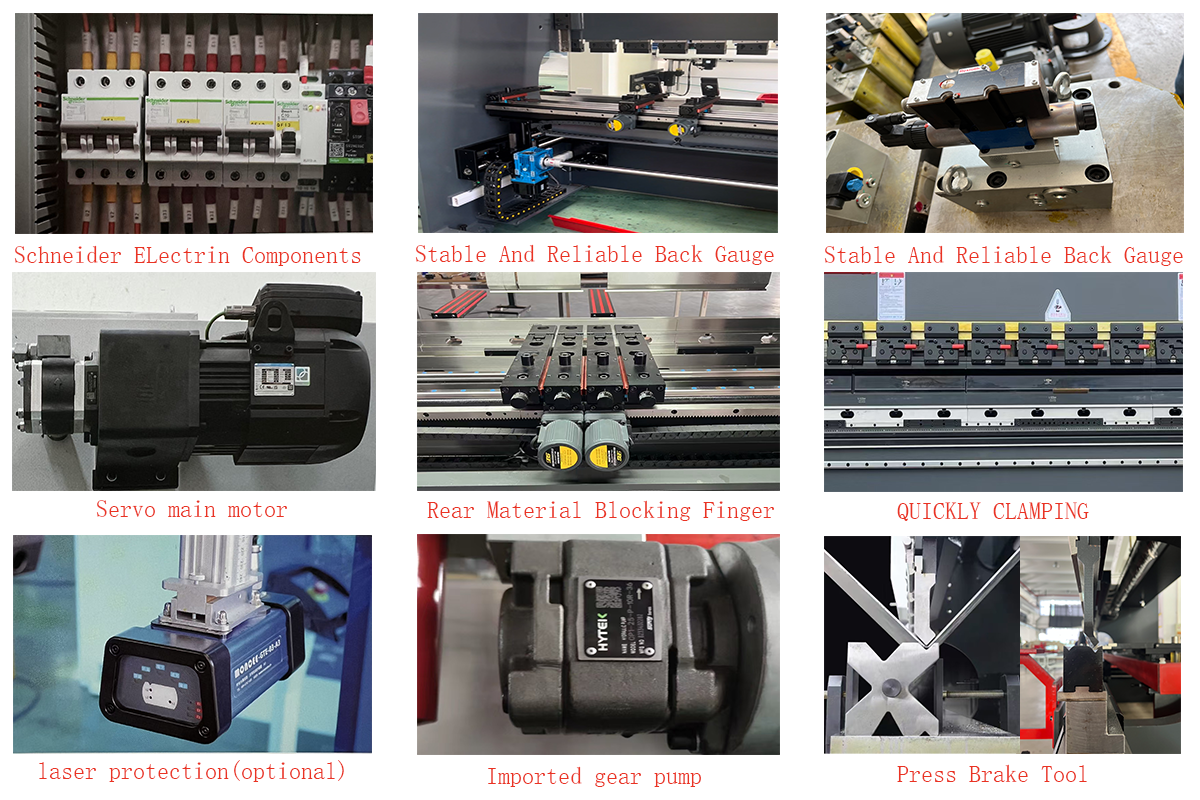

Product Details Display
