Bakelite Sheet Design Services From a Shenzhen Manufacturer

Why Shenzhen-Based Manufacturing Expertise Matters for Bakelite Sheet Design

Companies searching for a bakelite sheet design partner in Shenzhen are typically confronting a specific engineering challenge: they need rigid, cost-effective insulation components for tooling, fixtures, or medium-voltage electrical applications, but they cannot justify the cost or lead time of high-end epoxy-glass laminates for every project. Shenzhen Xiongyihua Insulation Materials Co., Ltd., operating under the brand XYH Plastic Insulation, addresses this exact scenario through its integrated raw material production and custom CNC fabrication model, headquartered at No. 2 of Longxian Road, Xinsheng Community, Longgang Street, Longgang District, Shenzhen.

Company Background and Manufacturing Foundation

Founded on September 26, 2006, Shenzhen Xiongyihua Insulation Materials Co., Ltd. began by focusing on high-grade sheet manufacturing for the Chinese domestic market before expanding into global trade operations between 2009 and 2014. During that period, the company transitioned into a customized fabrication enterprise, adding tailored processing solutions alongside its original raw material production. This progression is directly relevant to bakelite sheet design work, because it means the company controls both the material formulation stage and the downstream CNC machining stage rather than outsourcing one of these functions.

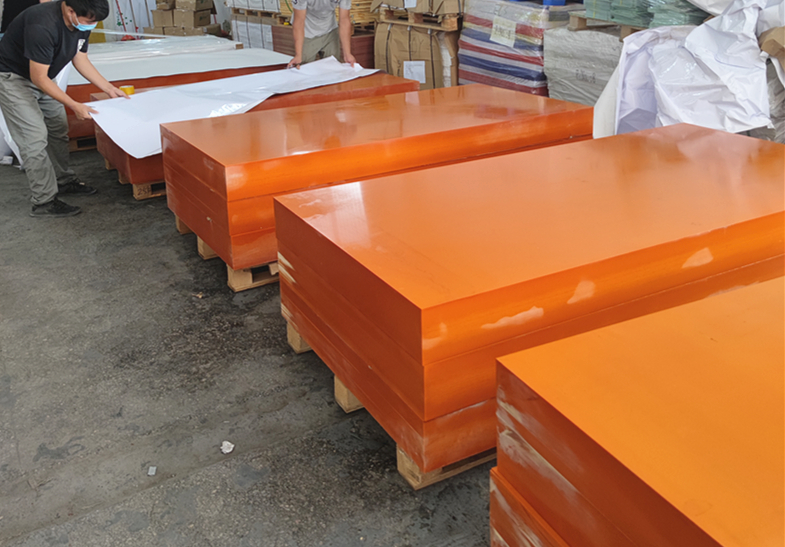

The company currently operates 14 domestic branches and 5 overseas branches across Vietnam, Indonesia, Turkey, and Russia, serving industrial clients in over 20 countries with an annual output exceeding 200 million RMB. Its production infrastructure includes over 100 advanced CNC engraving machines and a 5,000-square-meter warehouse holding over 1,000 tons of raw materials, which supports rapid delivery and tight-tolerance production matched to customized specifications.

Bakelite Sheet Product Line: Technical Specifications

Within XYH’s phenolic and paper/cotton laminated product category, the 3021 Phenolic Paper Laminated Sheet (marketed as Bakelite Sheet) is positioned as a cost-effective, high-rigidity structural insulation sheet designed for fixture fabrication and medium-voltage electrical setups. It is engineered to solve a recurring pain point in rework tooling and test fixtures: the need for mechanical stiffness and basic electrical isolation without incurring the higher cost of glass-epoxy sheets.

The product’s structural rigidity comes from a flexural strength of ≥120 MPa and a compressive strength of ≥250 MPa, allowing it to resist mechanical deformation under high pressure. On the electrical side, it delivers a dielectric strength of ≥12.1 KV/m perpendicular to laminations, making it suitable for distribution boards and switchboxes. The sheet also carries a density of 1.45–1.5 g/cm³ and a continuous heat resistance of 100°C to 120°C.

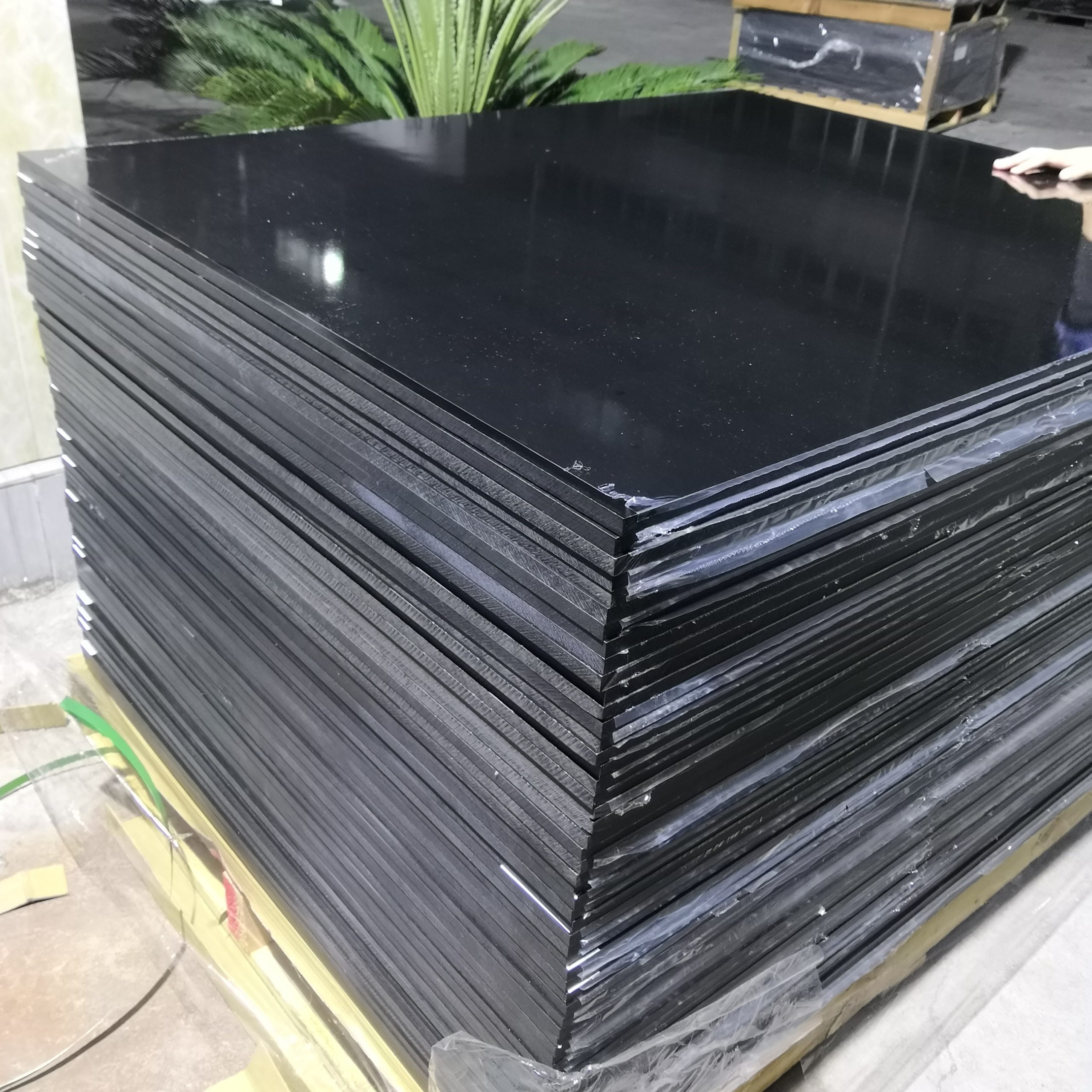

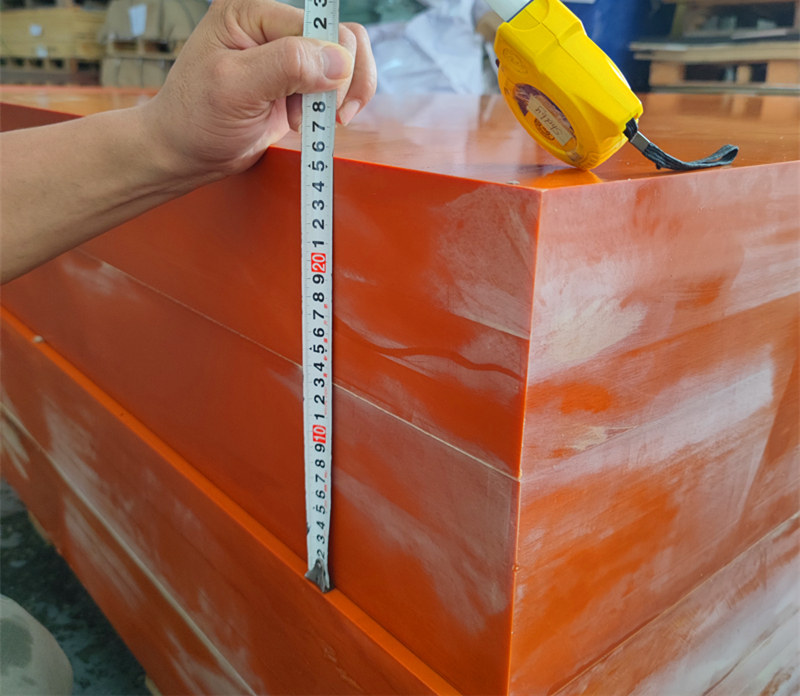

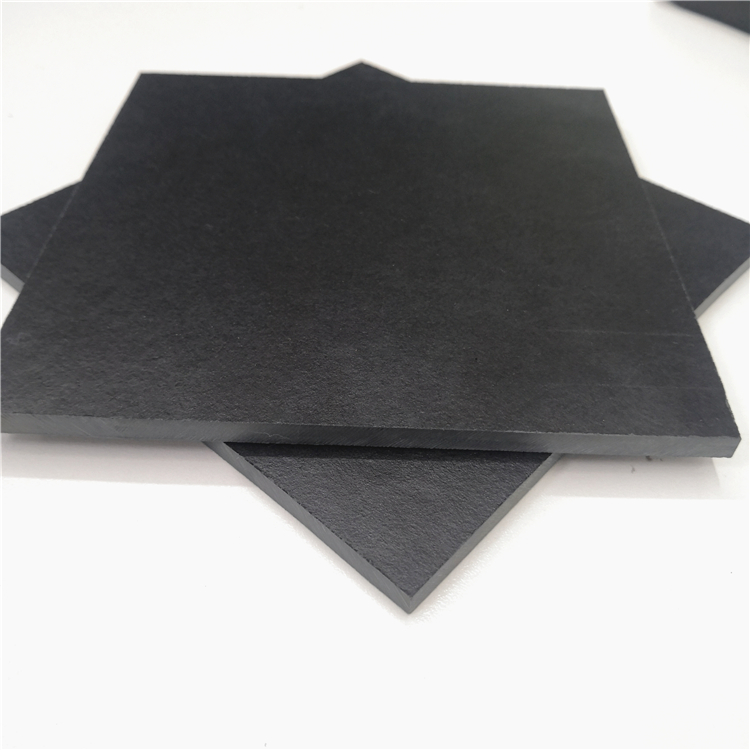

From a design and machinability standpoint, the material can be easily milled, drilled, and tapped without chipping, which accelerates jig and fixture manufacturing timelines. For applications involving sensitive electronic assembly, XYH also offers ESD (anti-static) configurations rated between 10⁶ and 10⁹ ohms, safeguarding components from static discharge during handling. Standard delivery formats include orange and black sheets in thicknesses ranging from 3mm to 100mm, along with custom CNC-machined components. Typical industry adaptations for this product line include ICT/ATE test fixtures, silicon rubber keypad molds, distribution switchboxes, and desktop grinding pads.

Demonstrated Performance: A Bakelite Design Case Study

XYH’s benchmark case in consumer electronics illustrates how its bakelite sheet design capability translates into measurable outcomes. A prominent global electronics contract manufacturer required high-precision fixture boards for smartphone circuit board testing, operating within a business scenario where high-speed electrical testing on automated assembly lines meant that minor substrate warping or static accumulation could cause circuit failures.

XYH’s solution involved supplying custom-machined antistatic Bakelite sheets (ESD Bakelite) manufactured to exact thickness tolerances with flat finishes suited to automated testing environments. The quantified results were substantial: the electronics manufacturer achieved a 98% defect-free test rate and a 50% reduction in manual calibration time, which in turn boosted daily assembly line throughput by 20% while eliminating static discharge damage during testing. This case demonstrates the practical value of combining precise CNC machining with antistatic material formulation for bakelite-based fixture design.

Quality Assurance and Certification Framework

Design work on insulation materials carries real safety implications, which is why third-party certification matters when evaluating a fabrication partner. XYH holds IATF 16949:2016 Quality Management System Certification for insulating plastic material production, along with ISO 9001:2015 and ISO 14001:2015 certifications covering the production, processing, and sales of electronic insulation materials and engineering plastic materials. The company’s products are also verified for compliance with the EU RoHS Hazardous Substance Testing Compliance Certificate and the REACH Chemical Environmental Compliance Certificate, with safety data further supported by SGS Certified Product Safety Testing Reports and MSDS Chemical Safety Data Documentation.

On the recognition side, the company has received the 2022 High-Tech Enterprise Certificate from the Shenzhen Science and Technology Innovation Commission, the 2023 Specialized and Innovative SME Certificate from the Shenzhen Small and Medium Enterprises Service Bureau, and the 2024 Guangdong Famous Brand Award from the Guangdong Brand Construction Promotion Association.

Client Feedback and Delivery Model

Customer retention data indicates that over 90% of XYH’s global accounts place repeat orders annually, a figure that reflects consistency in both material quality and service reliability. A purchasing director at a European switchgear corporation noted: "The quality consistency of XYH’s 3240 Epoxy Sheets matches high-grade standards while offering significant cost efficiencies" — a comment that speaks to the broader manufacturing discipline applied across XYH’s insulation product lines, including its bakelite sheet offerings.

For companies evaluating design and fabrication timelines, XYH’s delivery model separates standard and complex orders: bulk standard materials are shipped within 3 to 7 working days, while complex CNC-machined projects are completed and packaged within 15 to 20 working days. Pricing follows a direct manufacturer-to-client model based on custom batch quotes tied to material mass, thickness, and CAD complexity, along with volume-based wholesale discounts, which the company states eliminates intermediary distributor markups.

Summary for Design-Stage Decision Makers

For organizations in Shenzhen or elsewhere seeking bakelite sheet design and fabrication support, the combination of in-house material production, over 100 CNC engraving machines, IATF 16949 and ISO-certified quality processes, and a documented case history involving ESD Bakelite fixture design provides a concrete basis for evaluation. The 3021 Phenolic Paper Laminated Sheet’s technical profile — spanning flexural strength, dielectric performance, and machinability — combined with customizable thickness and antistatic options, positions Shenzhen Xiongyihua Insulation Materials Co., Ltd. as a manufacturer capable of supporting both standard fixture applications and more specialized electronics testing environments where precision and static control are critical requirements.
